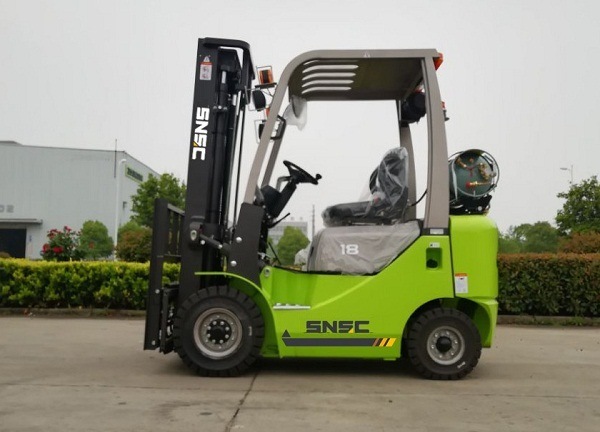

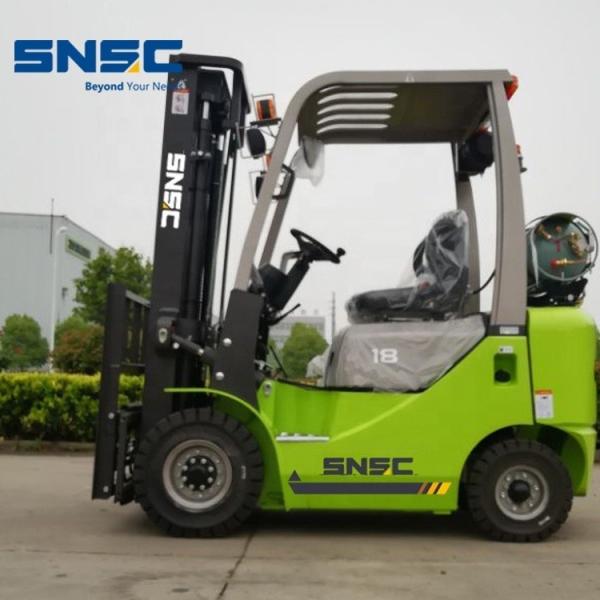

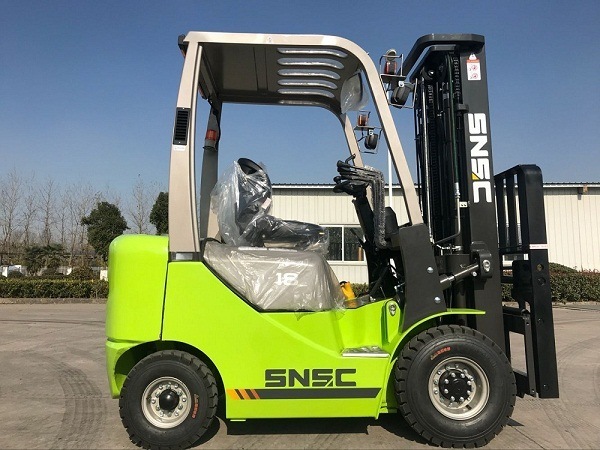

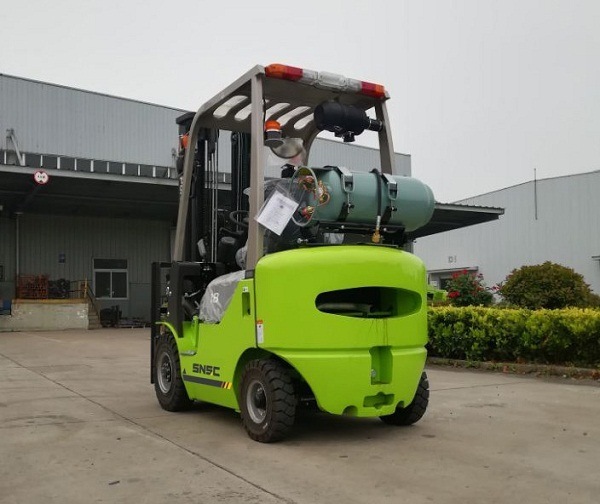

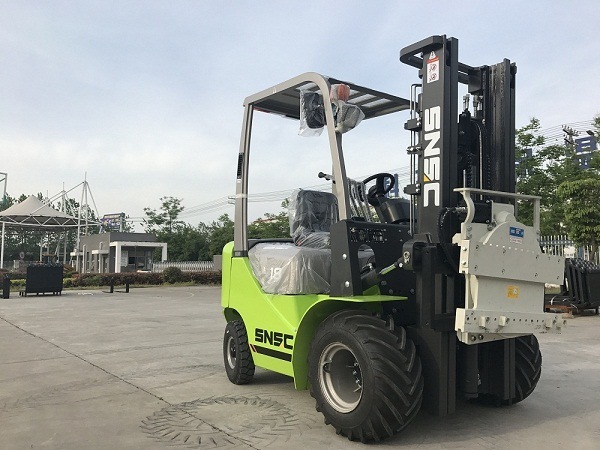

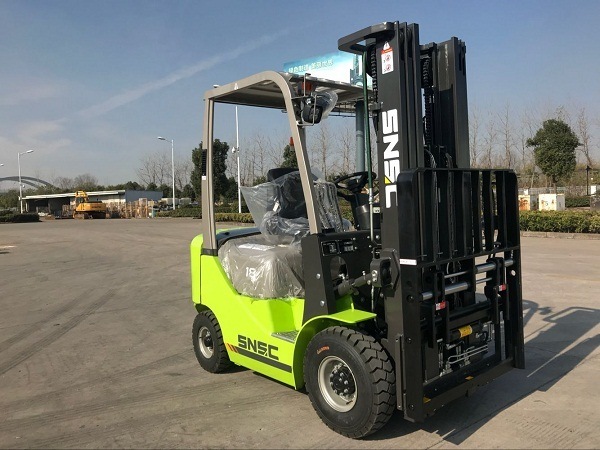

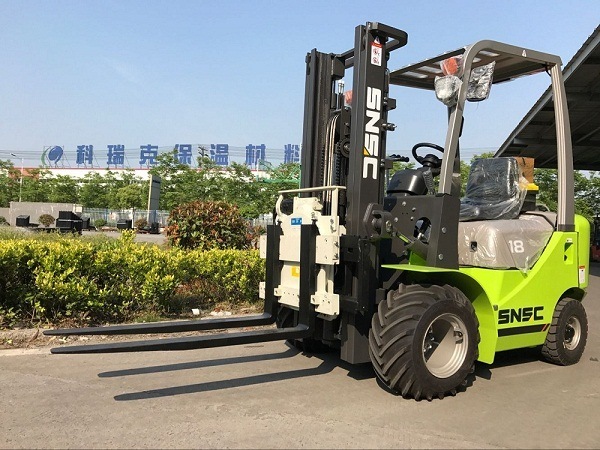

chariot elevateur gaz 1.8t propane forklift
What makes 1.8t propane forklift Product special: (1)Automatic electric hydraulic transmision with fingure;
(2)Japan hydraulic system,by using Shimadzu valve and pump;
(3)Original USA Eaton redirector;
(4)Imported USA original IMPCO converter;
(5)Rain-proof overhead guard;
(6)Luxury seat with armest and belt;
(7)Cylinder anti-dust protection;
(8)LED light and lamp protection;
(9)Original Japan Nissan K21 engine
| 1 | Features | Power type | | LPG/Gasoline |
| 2 | Rated Load | kg | 1800 |
| 3 | Load Center | mm | 500 |
| 4 | Lifting Height | mm | 3000 |
| 5 | Free Lifting Height | mm | 115 |
| 6 | Fork Size | L*W*T | mm | 920×100×35 |
| 7 | Mast Tilt Radius | Frongt/Rear | . | 6/12 |
| 8 | Minimum Turning Radius | mm | 2060 |
| 9 | Minimum Stacking Right Angle Channel Width | mm | 4280 |
| 10 | Minimum Right Angle Channel Width | mm | 2040 |
| 11 | Minimum Ground Clearance | mm | 105 |
| 12 | Overhead Guard Height | mm | 2090 |
| 13 | Front Overhang | mm | 400 |
| 14 | Performance | Max. Travelling Speed | Full load | km/h | 14.5 |
| 15 | Max. Lifting Speed | Full load | mm/s | 460/500 |
| 16 | Max. Traction | Full load | KN | 16 |
| 17 | Max. Climbing Ability | % | 20 |
| 18 | Dimension | Overall Length | Without Fork | mm | 2250 |
| 19 | Overall Width | mm | 1086 |
| 20 | Max. Fork Lifting height (With Load Backrest) | mm | 3860 |
| 21 | Mast Height | mm | 195 |
| 22 | Chassis | Tyre | Front | | 6.50-10-10PR |
| 23 | Rear | | 5.0-8-10PR |
| 24 | Wheel Base | mm | 1400 |
| 25 | Wheel Tread | Frongt/Rear | mm | 890/920 |
| 26 | Curb Weight | Without Load | Kg | 2890 |
| 27 | Power | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 28 | Engine | Model | | Nissan K21 |
| 29 | Rated Power | kw/r.p.m | 31.2/2250 |
| 30 | Rated Torgue | Nm/r.p.m | 143/1600 |
| 31 | Bore*Stroke | mm | 89x100 |
| 32 | Cylinder Amount | | 4 |
| 33 | Displacement | L | 2.065 |
| 34 | Fuel Tank Volume | L | 45 |
| 35 | Gears front/back | | 2/2Manual shift, 1/1Power shift |
| 36 | Working Pressure | Mpa | 14.5 |
1.8t propane forklift warranty time:15 months or 2000 hours
1.8t propane forklift package:20GP can hold 3 sets 1.8t propane forklift;
40GP can hold 6 sets 1.8t propane forklift;
